CIMC 30000 Litres Tri-Axle Liquid Asphalt Tanker Trailer
CIMC 30000 Litres Tri-Axle Liquid Asphalt Tanker Trailer is optimized with advanced temperature retention technology, ensuring optimal fluidity throughout transit and safeguarding the quality and safety of asphalt and similar liquid cargoes.
Get a Quote
KEY SPECIFICATIONS OF CIMC 30000 Litres Tri-Axle Liquid Asphalt Tanker Trailer
CIMC 30000 Litres Tri-Axle Liquid Asphalt Tanker Trailer is designed for optimal performance, safety, and operational efficiency, our bitumen tanker trailers are widely deployed in highway construction, asphalt paving, and various other engineering projects. Each unit is fitted with an integrated heating system to sustain asphalt at its ideal fluidity level, ensuring seamless loading and unloading processes. In addition, the tank body of our bitumen tanker trailers is constructed with high-performance insulation materials, which effectively preserve asphalt temperature and minimize heat loss during transit.
PARAMETER

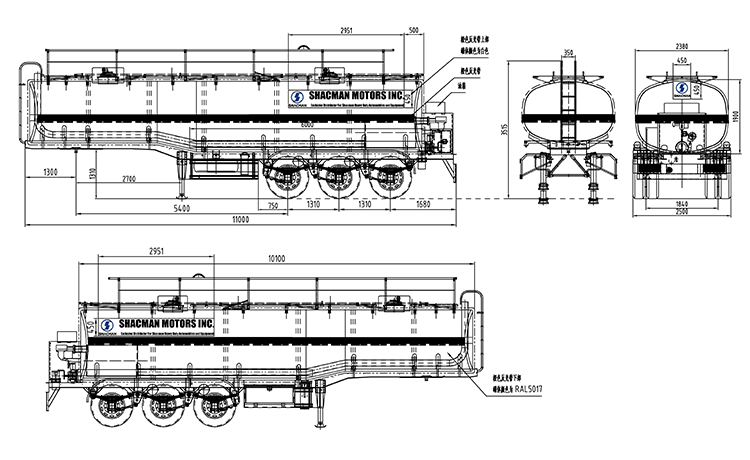

| Overall Dimension(L*W*H) | 11000×2500×3515mm |
| Volume | 30000L |
| Axle | FUWA 13 ton axle, 3 set |
| Suspension | Mechanical suspension |
| Landing leg | JOST E100 |
| Tire | 12R22.5-18PR. 13pcs |
| Burner | LIYALU brand: GW |
| Heat preservation layer | 50mm glass fibre |
| Discharge butterfly valve | 6″ |
