CIMC 40000 Litres Tri-Axle Bitumen Tanker Trailer

CIMC 40000 Litres Tri-Axle Bitumen Tanker Trailer is optimized with advanced temperature retention technology, ensuring optimal fluidity throughout transit and safeguarding the quality and safety of asphalt and similar liquid cargoes.

Get a Quote

KEY SPECIFICATIONS OF CIMC 40000 Litres Tri-Axle Bitumen Tanker Trailer

CIMC 40000 Litres Tri-Axle Bitumen Tanker Trailer is designed for optimal performance, safety, and operational efficiency, our bitumen tanker trailers are widely deployed in highway construction, asphalt paving, and various other engineering projects. Each unit is fitted with an integrated heating system to sustain asphalt at its ideal fluidity level, ensuring seamless loading and unloading processes. In addition, the tank body of our bitumen tanker trailers is constructed with high-performance insulation materials, which effectively preserve asphalt temperature and minimize heat loss during transit.

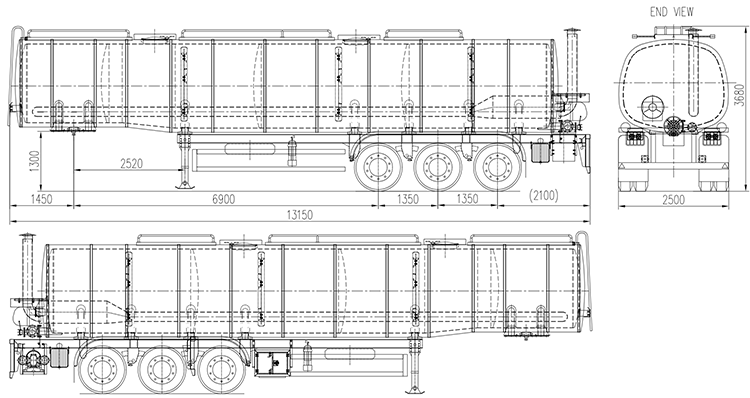

Drawing For CIMC 40000 Litres Tri-Axle Bitumen Tanker Trailer

PARAMETER

Overall Dimension(LWH)	13150×2550×3700mm
Volume	40000L
Axle	FUWA 13 ton axle, 3 set
Suspension	Mechanical suspension
Landing leg	JOST E100
Tire	315/80R22.5-18PR. 13pcs
Burner	LIYALU brand (RL34)
Asphalt pump	380V, three phase
Heat preservation layer	100mm glass fibre
Cladding	0.7mm stainless steel
