SM-50 PD Rotary Vane Flow Meter
Flow Meters: Used for Petrol, diesel, LPG, CNG etc. all kinds of viscos oils & chemicals.
Get a Quote
KEY SPECIFICATIONS OF SM-50 PD Rotary Vane Flow Meter
Characteristics:
1.Stepless adjusting mechanism allows a micro adjustment of the meter.Special designed Manifold separates from measuring chamber for flexible installtaion.
2.Low pressure loss
3.Simple construction of rotor blades for easy and low maintenance cost Wearing compensation to maintain a good accuracy all along the years.
4.Meter for viscous products up to 800 Cst
Material:
Manifold: Steel or Aluminium
Body: Ni-resist Cast Iron
Covers: Steel
Rotor: Aluminium
Blades: Carbon
Bearings: Stainless Steel
Seals/ gaskets: Viton, Buna” N”
Application:
Oil company:refineries,Stock Terminal, gas station and Tank trucks
Airports: aircraft refuellers
Ports: boats/barges
Private oil transport companies
| Technical Specification | ||
| Model | SM-50 | SM-80 |
| Size | 50mm/2″ | 80mm/3″ |
| Volume per Revolution | 0.4L/0.08US Gallon | 2.27L/0.5US Gallon |
| Flow Range | 40-400L/Min | 133-1333L/Min |
| Accuracy | ±0.2% | |
| Repeatability | ≤0.05% | |
| Max. Operation Pressure | 8 Bar | |
| Working Temp. | -40℃~+60℃ | |
| Packaging | 1pc/Carton | |
| Net Weight | 18.5kgs | 65kgs |
| Gross Weight | 19.5kgs | 75kgs |
| Size | 35×29×47cm | 44×40×62cm |
PARAMETER
Related Products

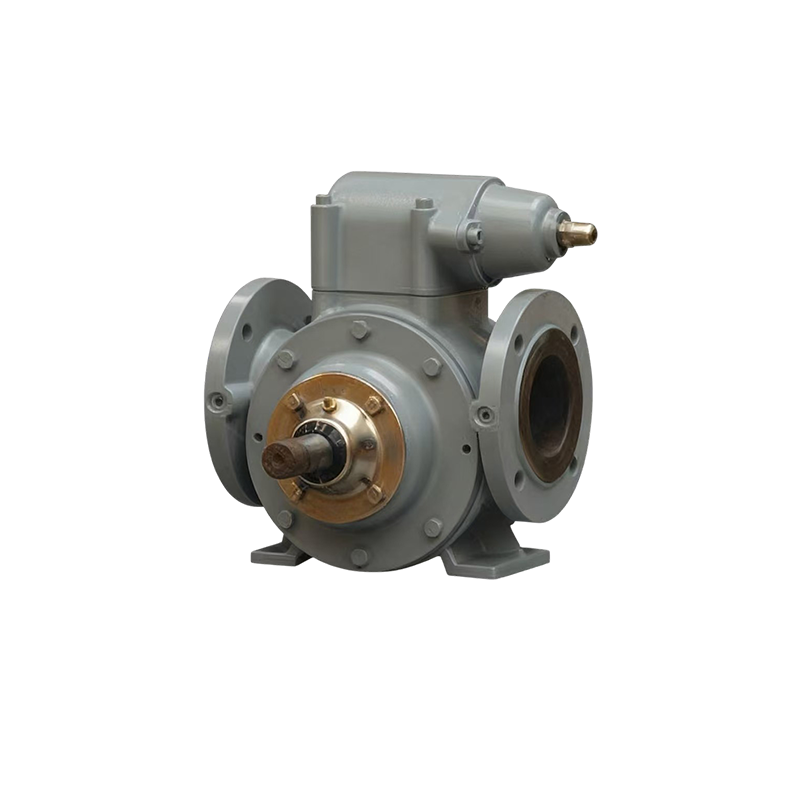

DYB-300/400 Series Rotary Vane Pump
| Model No. | DYB-300/400 |
| Application | Petrol, diesel,LPG |
| Brand | Altrac |

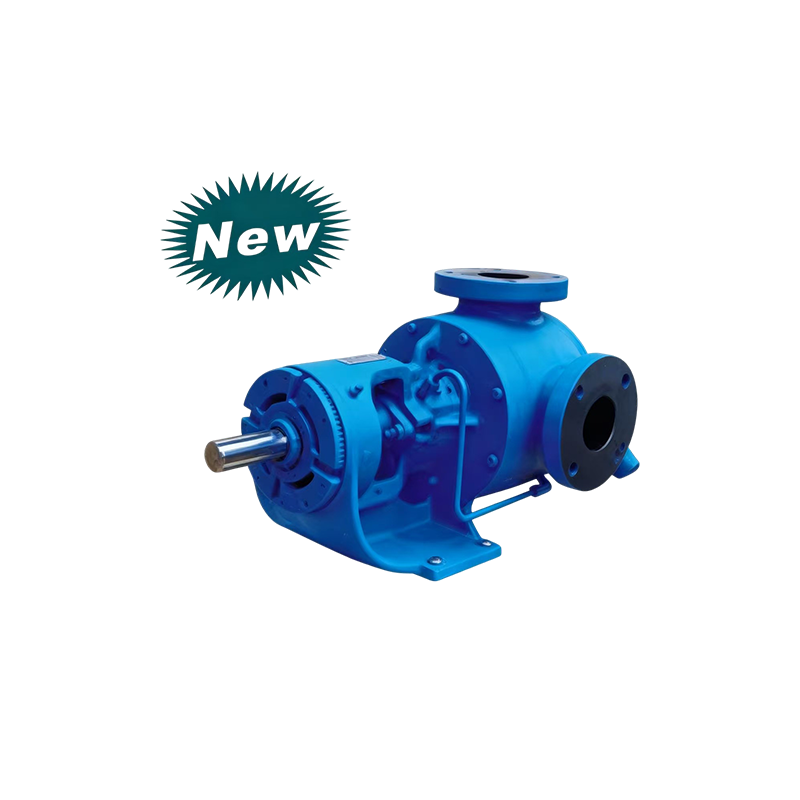

SUB-40 Series Rotary Vane Pump
