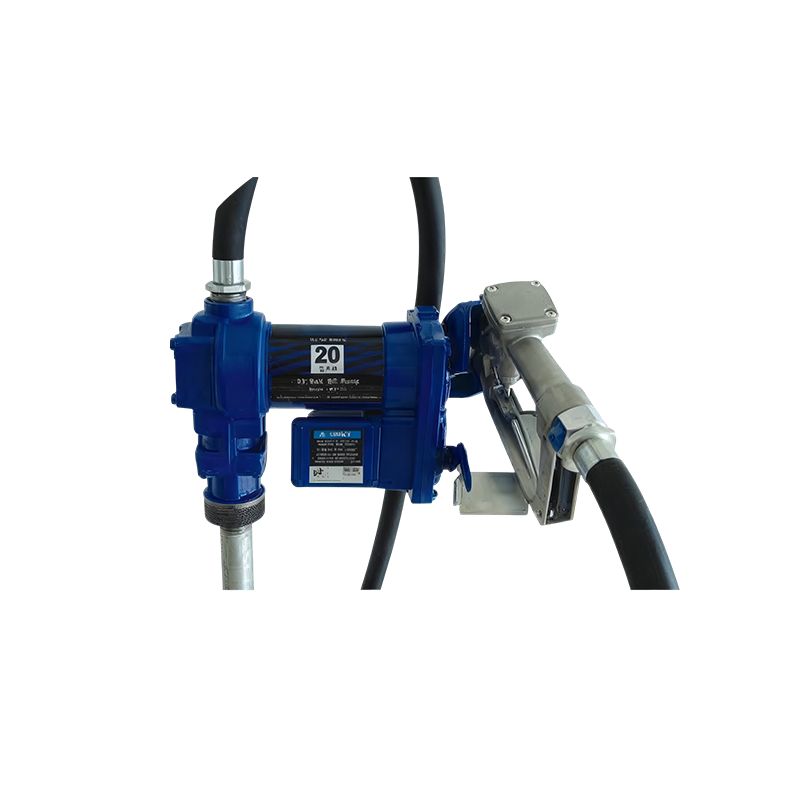

KEY SPECIFICATIONS OF DYB50-DC12B Electric Transfer Pump,Explosion Proof
Advantage:
For diesel,gasoline, kerosene, mineral spirits, solvent and heptane. Explosion-proof permanent magnet motor with thermal overload protection. Built-in strainer, bypass valve
Ball bearing construction, no lubrication required” diameter, 12″ hose with static ground wire and 1 ” manual nozzle,nozzle boot that protects against dirt and contamination. 2″ threaded base for tank openings. Corrosion-proof section pipe
Rain proof, Water proof
30-minute duty cycle,not for continuous operation.
Technical Specification & Package :
| Model | DYB50-DC12B/24B | DYB75-DC12B |
| Body Material | CastIron | CastIron |
| Max. Flowrate | 15GPM(57LPM) | 20GPM(76LPM) |
| Explosion-Proof Motor | 1/4″ HP | 1/4″ HP |
| Voltage | DC 12 or DC 24 | DC 12 |
| Inlet | 1″ NPT | 1″ NPT |
| Outlet | 3/4″ NPT | 1″ NPT |
| Threaded Tank Adapter | 2″ NPT | 2″ NPT |
| Nozzle Hanger | Yes | Yes |
| Option | FM-40G meter in gallons or FM-120 meter in liters Automatic nozzle |
|
PARAMETER
