CIMC 50 Ton Mafi Roll Terminal Yard Trailer
CIMC 50 Ton Mafi Roll Terminal Yard Trailer designed for stevedoring and transporting 1x40ft or 2x20ft ISO cargo containers, loose cargo, or large non – knocked – down goods on Ro – Ro vessels or within terminals. They are commonly used in ports and on board roll – on/roll – off ships to facilitate the transportation of immovable and over – sized goods from one port to another. Payload: 50 Ton.
Get a Quote
KEY SPECIFICATIONS OF CIMC 50 Ton Mafi Roll Terminal Yard Trailer
CIMC 50 Ton Mafi Roll Terminal Yard Trailer works with terminal tractor truck for seamless transfer of ISO containers, over-sized cargo and heavy break-bulk goods in ports, yards and onboard vessels. Adopting sturdy steel frame + hardwood bearing surface, it features stable load-bearing, high structural rigidity and wear resistance, fitting 20ft/40ft standard container specs perfectly. With rated payload 50-100 tons, front towing pocket and side lashing points, it ensures safe, efficient cargo fastening and movement, cutting port handling time and lifting costs significantly, and is the core equipment for smooth port logistics.
HANJIN — Korea ECT — Netherland HMM — Korea CSI — Euro SAPT — Pakistan CICT — Sri Lanka

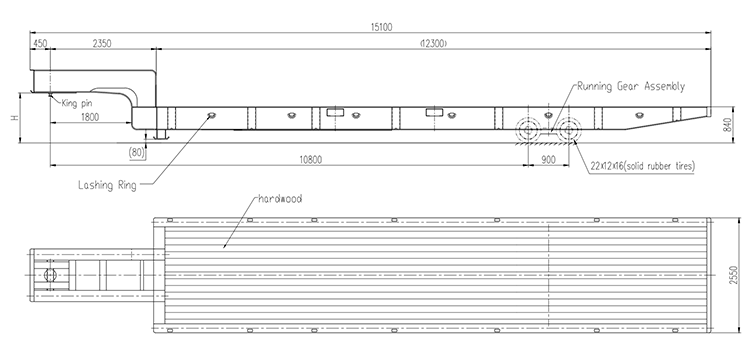

PARAMETER
| Overall Dimension(L*W*H) | 15100×2550×1550mm |
| Payload | 50,000kg |
| Axle | 4 sets |
| Deck | Hardwood |
| Kingpin | 2″ bolted |
| Tire | Solid, 22×12×16, 8pcs |
| Lashing Rings | 6pcs each side beams |
| Coating | Anti-rust,finishing paint |
Related Products
CIMC 61 Ton 40 Ft Standard Terminal Trailer
| Type | 40ft |
| Payload | 61 ton |
| Tyre | 10.00-20 solid |
Spare Parts
Our supply capability ensures reliable compatibility, stable quality, and long-term support for global fleet operation and maintenance.
- Trailer structural and running gear components
- Tanker system parts for fuel, liquid and powder trailers
- Flow meters, PD meters and liquid transfer pumps
- LPG pumps, dispensers and tanker accessories
- Axle parts compatible with FUWA and BPW systems
- Hydraulic components compatible with HYVA systems
- Engine and truck parts including YUCHAI and ISUZU
- Stable supply supporting long-term fleet maintenance
