CIMC 50 Ton 40Ft Tri-Axle Straight Beam Skeletal Semi Trailer(16 locks)
CIMC 50 Ton 40Ft Tri-Axle Straight Beam Skeletal Semi Trailer (16 locks)for carrying dry cargo ISO container (double tire) (4×10 Container ). (Forbid to carrying tank-container). Payload: 50 Ton
Get a Quote
KEY SPECIFICATIONS OF CIMC 50 Ton 40Ft Tri-Axle Straight Beam Skeletal Semi Trailer(16 locks)
CIMC 50 Ton 40Ft Tri-Axle Straight Beam Skeletal Semi Trailer is optimized for transporting 10ft containers and especially popular hot selling in Southeast Asia.We can package 2 units 40ft skeleton trailer(rear frame bolted) in one 40ft container, the ocean freight cost will be lower and load into container can protect from seawater corrosion and rust.
CIMC has nearly 30 years of experience in the design and production of container transport semi trailers, and has formed a full range of products.
PARAMETER

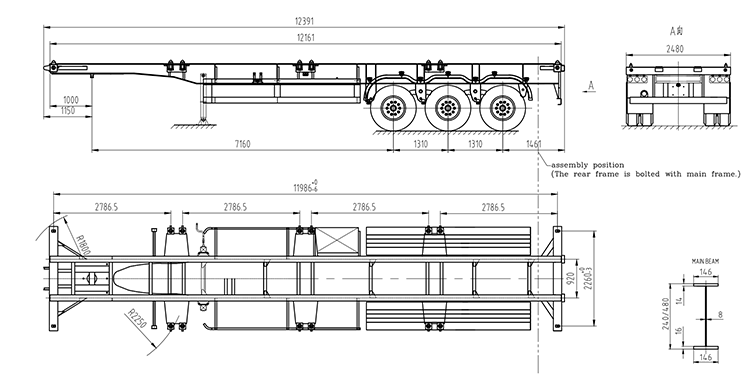

| Overall Dimension(L*W*H) | 12391×2480×1500mm |
| Payload | 50,000kg |
| Axle | FUWA 13 ton axle, 3 set |
| Suspension | Mechanical suspension |
| Landing leg | JOST E100 |
| Tire | 295/80R22.5. 13pcs |
| Lock | 16 sets twist locks |
| Brake | WABCO valve |
Related Products
CIMC 40Ft Tri-Axle Gooseneck Skeletal Semi-Trailer
| Type | Gooseneck |
| Payload | 40 ton |
| Twist locks | 12 sets |
CIMC 40Ft Tri-Axle Straight Beam Container Skeletal Trailer(8 Locks)
| Type | 40ft |
| Payload | 50 ton |
| Twist locks | 8 sets |
CIMC 40Ft Tri-Axle Straight Beam Skeleton Trailer(12 locks)
| Type | 40ft |
| Payload | 40 ton |
| Twist locks | 12 sets |
