CIMC 40 Ton 13m Tri-Axle Side Tipper Semi-Trailer
CIMC 40 Ton 13m Tri-Axle Side Tipper Semi-Trailer is designed for transporting cement or dry coal. Payload: 40 Ton
Get a Quote
KEY SPECIFICATIONS OF CIMC 40 Ton 13m Tri-Axle Side Tipper Semi-Trailer
CIMC 40 Ton 13m Tri-Axle Side Tipper Semi-Trailer equipped with premium hydraulic cylinders, via its hydraulic system, the trailer can tilt either side of the carriage and open the corresponding door to discharge materials ,which can greatly shorten the unloading time and improve the loading and unloading efficiency. the side tipper trailers deliver precise unloading control while minimizing maintenance needs. Ideal for hauling construction materials such as sand, cement, and bricks, they also excel at loading and unloading bulk raw materials like coal, iron ore, and slag in mining operations.
Note:

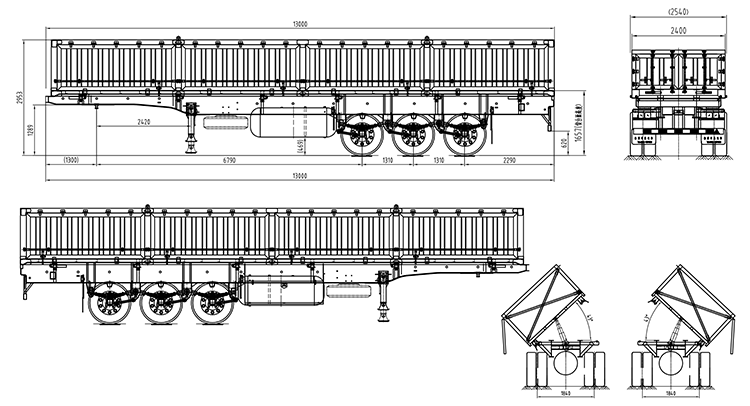

1,box size: 12700mmx2250mmx1300mm, bottom plate 3mm , side plate 2mm ;
1,box size: 12700mmx2250mmx1300mm, bottom plate 3mm , side plate 2mm ;
2,two side 4 pcs of tipping type door,rear door container type.
3,when discharge,open side door manually firstly,then tipping offloading,ClMC do not responsible for any safety issues;
4,bottom side with 6 pcs of $120 tipping cylinders,rear side with 1 displacement cylinder;
5,max tipping angle is 43 degree.
6,side guard:None
7,air pressure water tank height 469mm.
6,side guard:None
7,air pressure water tank height 469mm.
PARAMETER
| Overall Dimension(L*W*H) | 13000×2550×2953mm |
| Payload | 40,000kg |
| Axle | FUWA 13 ton axle, 3 set |
| Suspension | Mechanical suspension |
| Landing leg | JOST A400 |
| Tire | 12R22.5-18PR. 13pcs |
| Side lifting cylinder | φ120, 6 sets |
| Rear lifting cylinder | φ125-500, 1 set |
| PTO provided by | Tractor truck |
| Hydraulic oil filled by | End user |
