CIMC 30 Ton 2 Axle 20Ft Container Flatbed Trailer for carrying dry cargo ISO container (double tire)(1×20’ Container).( Forbid to carrying tank-container). Payload: 30 Ton
KEY SPECIFICATIONS OF CIMC 30 Ton 2 Axle 20Ft Container Flatbed Trailer
CIMC 30 Ton 2 Axle 20Ft Container Flatbed Trailer presents an economically viable and highly practical transportation solution in transporting containers, ISO standard container, 20ft.
In addition to the 20-foot containers, the flatbed semi-trailer series can also be used for the transportation of large and bulk cargo, and can provide a full range of models.
CIMC has nearly 30 years of experience in the design and production of container transport semi trailers, and has formed a full range of products.

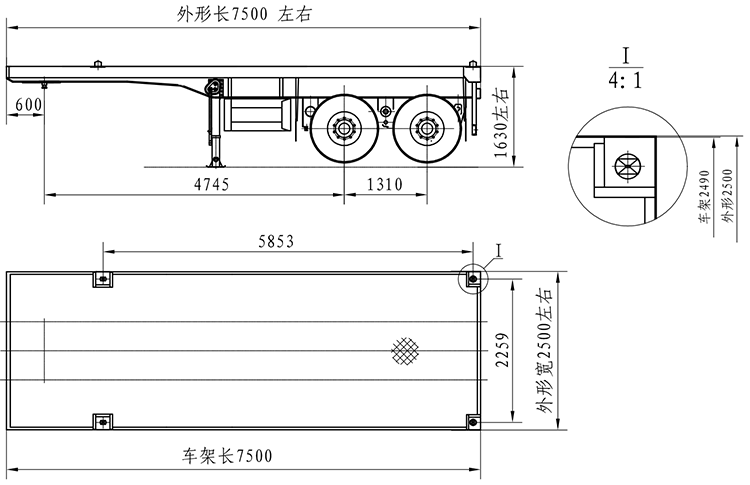

Drawing For CIMC 30 Ton 2 Axle 20Ft Container Flatbed Trailer
PARAMETER
Overall Dimension(L*W*H)
7500×2500×1630mm
Payload
30,000kg
Axle
FUWA 13 ton axle, 2 set
Suspension
Mechanical suspension
Landing leg
JOST E100
Tire
11R22.5. 9pcs
Lock
4 sets twist locks
Brake
WABCO valve
